Using LDBC SPB to Find OWLIM Performance Issues

by Venelin Kotsev / on 20 Aug 2014

During the past six months we (the OWLIM Team at Ontotext) have
integrated the LDBC Semantic Publishing Benchmark (LDBC-SPB) as a part of our development and
release process.

First thing we’ve started using the LDBC-SPB for is to monitor the
performance of our RDF Store when a new release is about to come out.

Initially we’ve decided to fix some of the benchmark parameters :

  • the dataset size - 50 million triples (LDBC-SPB50)
  • benchmark warmup and benchmark run times - 60s and 600s respectively.
  • maximum number of Editorail Agents (E) : 2 (threads that will execute
    INSERT/UPDATE operations)
  • maximum number of Aggregation Agents (A) : 16 (threads that will
    execute SELECT operations)
  • generated data by the benchmark driver to be “freshly” deployed before
    each benchmark run - benchmark driver can be configured to generate the
    data and stop. We’re using that option and have a fresh copy of it put
    aside ready for each run.

Having those parameters fixed, running LDBC-SPB is a straight-forward
task. The hardware we’re using for benchmarking is a machine with 2
Intel Xeon CPUs, 8 cores each, 256 GB of memory and SSD storage, running
Linux. Another piece of hardware we’ve tested with is a regular desktop
machine with Intel i7, 32 GB of memory and HDD storage. During our
experiments we have allowed a deviation in results of 5% to 10% because
of the multi-threaded nature of the benchmark driver.

We’ve also decided to produce some benchmark results on Amazon’s EC2
Instances and compare with the results we’ve had so far. Starting with
m3.2xlarge instance (8 vCPUs, 30GB of memory and 2x80GB SSD storage) on
a 50M dataset we’ve achieved more than 50% lower results than ones on
our own hardware. On a largrer Amazon Instance c3.4xlarge (16 vCPUs,
30GB of memory and doubled SSD storage) we’ve achieved the same
performance in terms of aggregation operations and even worse
performance in terms for editorial operations, which we give to the fact
that Amazon instances are not providing consistent performance all the

Following two charts are showing how OWLIM performs on different
hardware and with different configurations. They also give an indication
of Amazon’s capabilities compared to the results achieved on a
bare-metal hardware.

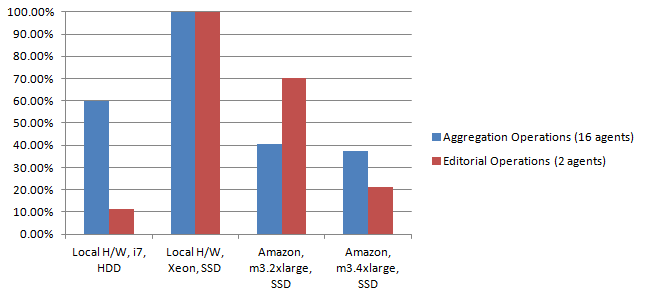

Figure 1 : OWLIM Performance : 2 amazon instances and 2 local machines.
16 aggregation and 2 editorial agents running simultaneously.
Aggregation and editorial operations displayed here should be
considered independently, i.e. even though editorial opeartions graph
shows higher results on Amazon m3.2xlarge instance, values are
normalized and are referring to corresponding type of operation.

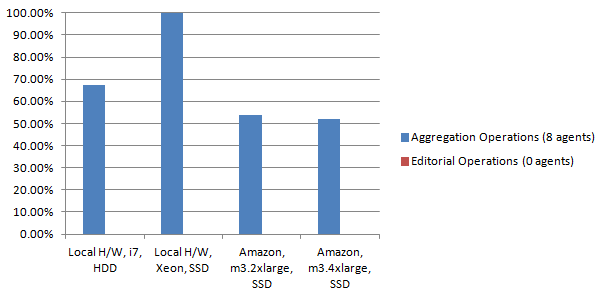

Figure 2 : OWLIM Performance : 2 amazon instances and 2 local machines.
8 aggregation running simultaneously. Read-only mode.

Another thing that we’re using LDBC-SPB for is to monitor load
performance speeds. Loading of generated data can be done either
manually by creating some sort of a script (CURL), or by the benchmark
driver itself which will execute a standard POST request against a
provided SPARQL endpoint. Benchmark’s data generator can be configured
to produce chunks of generated data in various sizes, which can be used
for exeperiments on load performance. Of course load times of
forward-chaining reasoners can not be compared to backward-chaining ones
which is not the goal of the benchmark. Loading performances is not
measured “officially“ by LDBC-SPB (although time for loading the data is
reported), but its good thing to have when comparing RDF Stores.

An additional and interesting feature of the SPB is the test for
conformance to OWL2-RL rule-set. It is a part of the LDBC-SPB benchmark
and that phase is called checkConformance. The phase is run
independently of the benchmark phase itself. It requires no data
generation or loading except the initial set of ontologies. It tests RDF
store’s capabilities for conformance to the rules in OWL2-RL rule-set by
executing a number of INSERT/ASK queries specific for each rule. The
result of that phase is a list of all rules that have been passed or
failed which is very useful for regression testing.
